Earthing fixed point

with cross-clamp

HEA P

Add to wish list

patented twist resistance provided by special contour of contact washer

For earthing connection via cross-clamp, for installation flush with formwork. An earthing connection can be made with the thread in the conductor core.

Facts

Advantages:

Connection of flat and round conductor in concrete
M12/M16 connecting threads (blind hole)
Watertight connection thread (blind hole)
Resistant to corrosion

Scope of delivery:

1 piece of protective cover with 4 nail holes

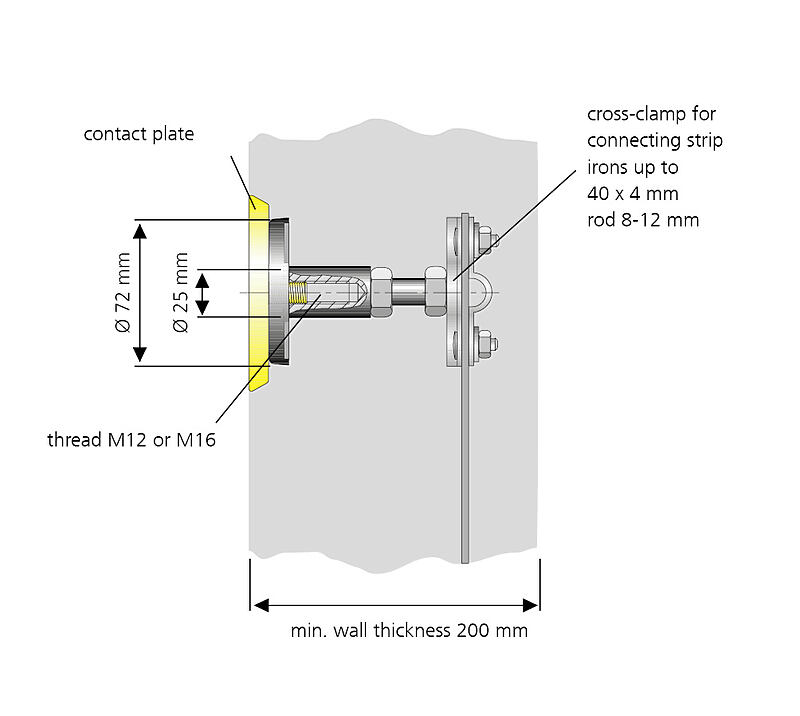

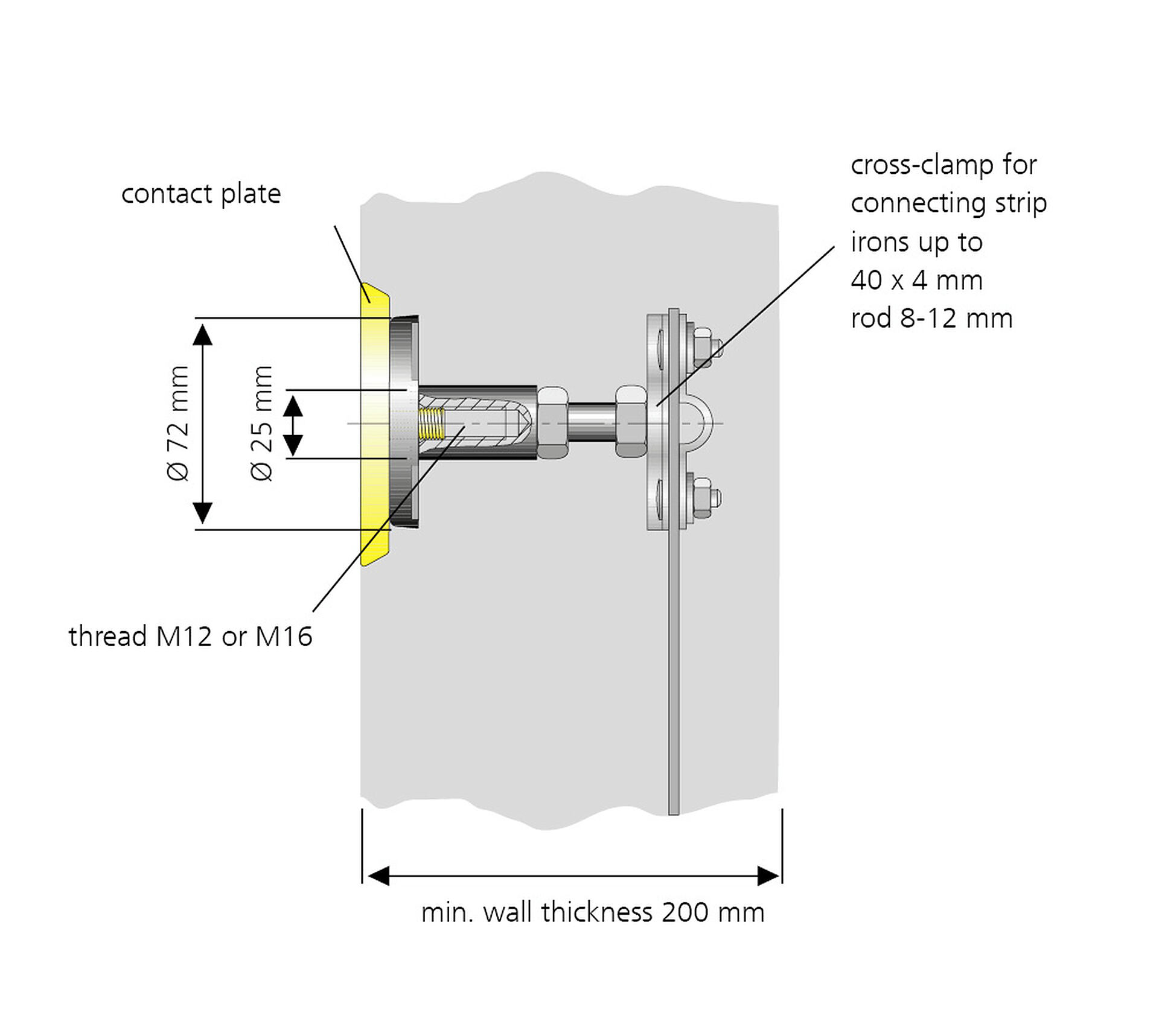

Dimensions:

Conductor core: round, Ø 25 mm
Contact washer: Ø 72 mm
Distance between contact washer and cross-clamp: 120 mm

Application range:

Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

Conductor core and contact washers: stainless steel V4A (AISI 316L)
Conductor core 70 x 70 mm with threaded bolt: St37 galvanised
Protective covers: PE

Tests/Standards:

To DIN 18014
DIN EN 62305-3
VDE 0185-305-3 (with lightning protection application)

Downloads

Installation instructions

HEA S, HEA P (PDF, 960KB)

Test reports

HEA P Nr. 20_389-1 (PDF, 578KB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Threaded bolt	Article code	Article number	GTIN
M12	HEA P M12	1700100010	4052487044745	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
M16	HEA P M16	1700100020	4052487044752	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
