Cable entries EarthingsInserts / new construction

Earthing entry

with terminal lug and cross-clamp

HEA PK

Add to wish list

Earthing entry - with terminal lug and cross-clamp

patented twist resistance provided by special contour of contact washer

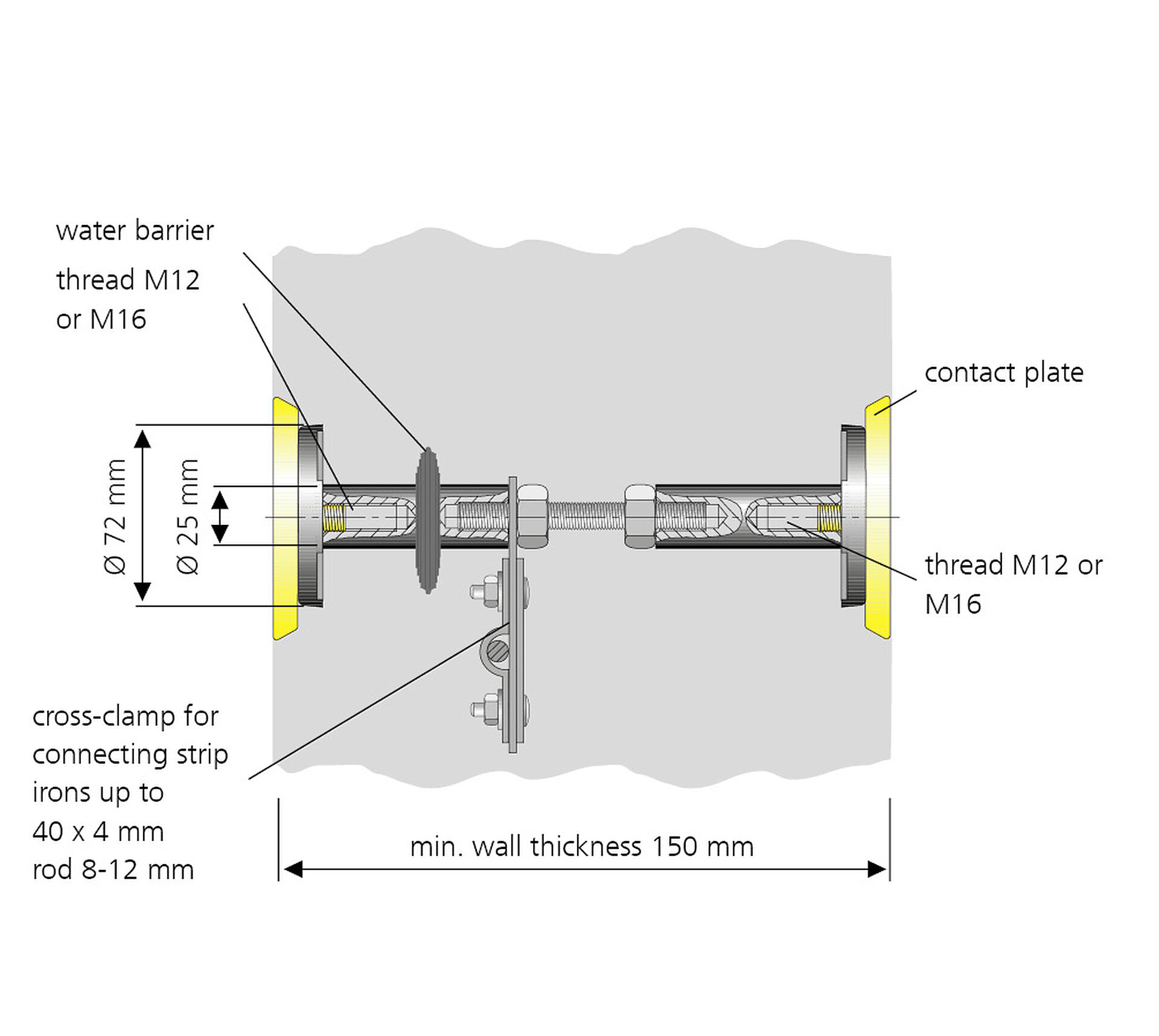

For installation flush with the formwork in waterproof concrete. Earthing connections can be made on the inside and outside with the thread on both sides in the conductor core. There is a tab with cross-clamp for making an earthing connection in the wall.

Facts

Advantages:

Water barrier for tightness with concrete
Watertight connection thread on both sides (blind hole)
Resistant to corrosion

Scope of delivery:

1 piece of cross-clamp for connecting reinforcement/concrete-footing earth
2 pieces of protective covers with 4 nail holes

Dimensions:

Conductor core: round, Ø 25 mm
Conductor core link: with M16 threaded bolt
Contact washer: Ø 72 mm

Application range:

Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

Conductor core and contact washers: stainless steel V4A (AISI 316L)
Conductor core link: St37, galvanised
Water barrier: NBR
Protective covers: PE
Terminal lug with cross-clamp: St37

Tests/Standards:

DIN 18014
DIN EN 62305-3
VDE 0185-305-3 (with lightning protection application)

Downloads

Installation instructions

HEA/HEA-E/HEA-PK/HEA-EW (PDF, 403KB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

wall thickness (mm)	Threaded bolt	Article code	Article number	GTIN
150	M12	HEA PK M12/150	1700030150	4052487141963	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
160	M12	HEA PK M12/160	1700030160	4052487168625	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
170	M12	HEA PK M12/170	1700030170	4052487206068	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
180	M12	HEA PK M12/180	1700030180	4052487206082	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	M12	HEA PK M12/200	1700030200	4052487136532	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
240	M12	HEA PK M12/240	1700030240	4052487136570	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	M12	HEA PK M12/250	1700030250	4052487136587	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	M12	HEA PK M12/300	1700030300	4052487136600	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
365	M12	HEA PK M12/365	1700030365	4052487136617	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
400	M12	HEA PK M12/400	1700030400	4052487136624	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
500	M12	HEA PK M12/500	1700030500	4052487136631	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

Intermediate sizes possible in 10 mm increments.

wall thickness (mm)	Threaded bolt	Article code	Article number	GTIN
150	M16	HEA PK M16/150	1700031150	4052487164795	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
160	M16	HEA PK M16/160	1700031160	4052487206143	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
200	M16	HEA PK M16/200	1700031200	4052487136655	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
240	M16	HEA PK M16/240	1700031240	4052487136679	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
250	M16	HEA PK M16/250	1700031250	4052487136686	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
300	M16	HEA PK M16/300	1700031300	4052487136693	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
365	M16	HEA PK M16/365	1700031365	4052487136709	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
400	M16	HEA PK M16/400	1700031400	4052487136716	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
500	M16	HEA PK M16/500	1700031500	4052487136723	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:

Configurator

Your individual article designation:

Your individual article number:

We cannot guarantee the feasibility of the configuration you have entered. If you have sent an enquiry, we will then check the configuration you have chosen again.
