Building entries Single building entriesThrough the wall - wall already exists (open construction)

Membrane injection system

for buildings with a basement

MIS90D

Add to wish list

Membrane injection system - for buildings with a basement

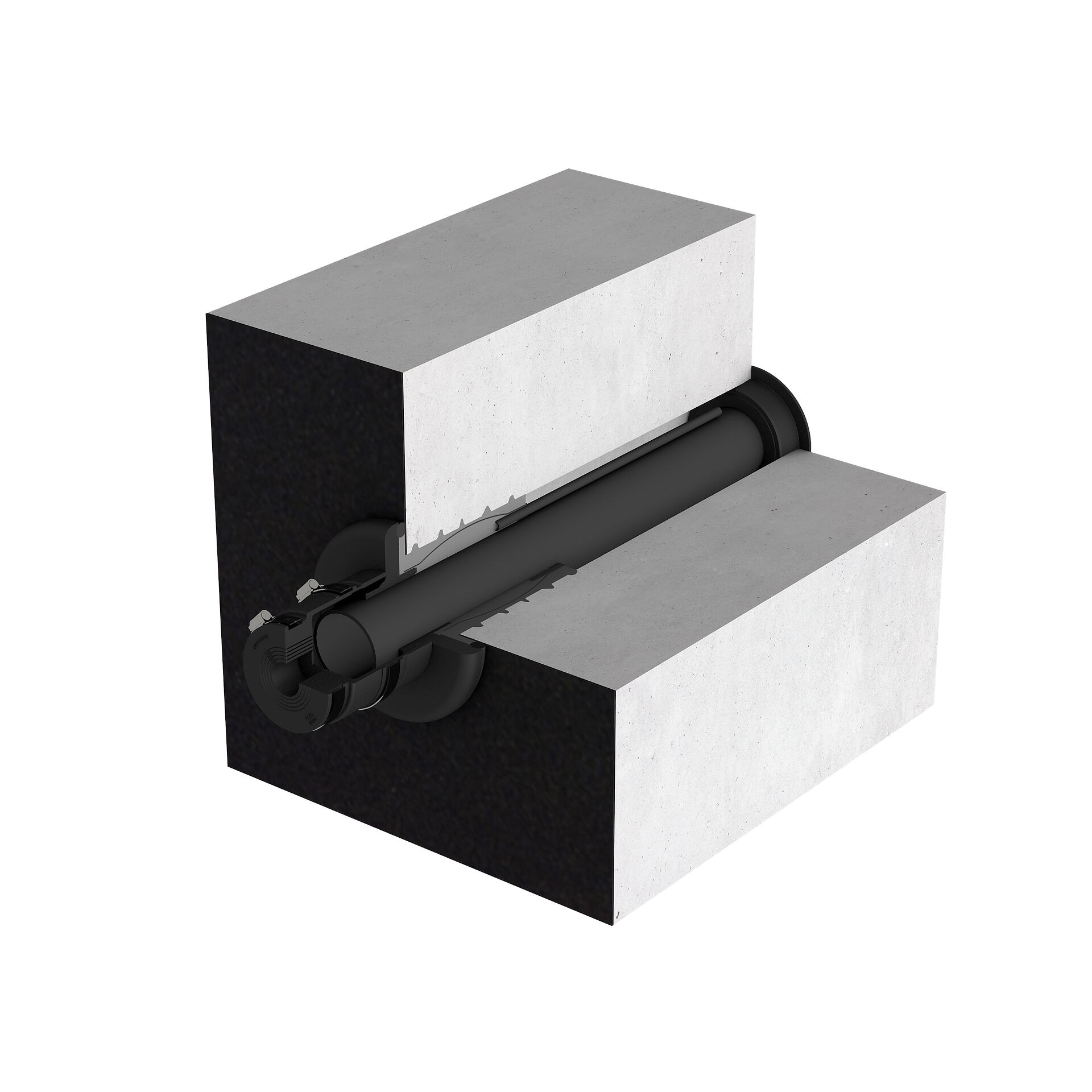

universal building entry with membrane injection system for drill holes in the most common types of wall
controlled ejection of resin through slit membrane hose
simultaneous sealing of power and communication services

For reliable sealing of all electricity and telecommunications lines without additional shrinking using a sealing sleeve.

Facts

Advantages:

Quick to assemble in just a few minutes
Not necessary to restore basement seal to DIN 18533
Flexibility provided by sealing sleeve with segmented ring technology

Scope of delivery:

1 packing unit:
6 pieces of MIS 90 including pre-mounted sleeve cap
6 pieces of wall collars

Dimensions:

For core drills ID: 92 - 102 mm

Application range:

Water exposure class DIN 18533: W1-E and W2.1-E
Waterproof concrete stress class 1, waterproof concrete stress class 2

Material:

Flange, counter-bearing, sleeve cap, wall rosette, membrane hose: EPDM
Resin filler hose: PE
Pipe: PVC-U
Sealing tape: butyl
Stainless steel clamping straps: V2A (AISI 304L)

Tightness:

gastight and watertight to 1.0 bar

Downloads

Brochures

Installation instructions

MIS90D (PDF, 2MB)

Test reports

MIS60D, Nr. 1742019-01a (PDF, 464KB)

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Number of cables/medium overall	Number of cables/medium	suitable for medium pipe OD (mm)	Overall lenght (mm)	wall thickness (mm)	Article code	Packing unit	Article number	GTIN
3	1 2	24-52 7	1000	200 - 900	MIS90D 1x24-52+2x7 K SET	1	3030300140	4052487113977	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
3	1 2	24-52 7	1000	200 - 900	MIS90D 1x24-52+2x7 K SET	6	3030300140	4052487220262	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
3	1 2	24-52 7	1300	900 - 1.200	MIS90D 1x24-52+2x7 L SET	1	3030300142	4052487114004	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
3	1 2	24-52 7	1300	900 - 1.200	MIS90D 1x24-52+2x7 L SET	6	3030300142	4052487220286	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
8	1 3 2 2	24-40 7-13 5-8 7	1000	200 - 900	MIS90D 1x24-40+3x7-13+2x5-8+2x7 K SET	1	3030300143	4052487113960	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
8	1 3 2 2	24-40 7-13 5-8 7	1000	200 - 900	MIS90D 1x24-40+3x7-13+2x5-8+2x7 K SET	6	3030300143	4052487220293	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
8	1 3 2 2	24-40 7-13 5-8 7	1300	900 - 1.200	MIS90D 1x24-40+3x7-13+2x5-8+2x7 L SET	1	3030300149	4052487215077	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
8	1 3 2 2	24-40 7-13 5-8 7	1300	900 - 1.200	MIS90D 1x24-40+3x7-13+2x5-8+2x7 L SET	6	3030300149	4052487220330	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
7	1 3 1 2	13-21 7-13 5-13 7	1000	200 - 900	MIS90D 1x13-21+3x7-13-1x5-13+2x7 K SET	1	3030300144	4052487126670	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
7	1 3 1 2	13-21 7-13 5-13 7	1000	200 - 900	MIS90D 1x13-21+3x7-13-1x5-13+2x7 K SET	6	3030300144	4052487220309	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
7	1 3 1 2	13-21 7-13 5-13 7	1300	900 - 1.200	MIS90D 1x13-21+3x7-13-1x5-13+2x7 L SET	1	3030300150	4052487215084	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
7	1 3 1 2	13-21 7-13 5-13 7	1300	900 - 1.200	MIS90D 1x13-21+3x7-13-1x5-13+2x7 L SET	6	3030300150	4052487220347	Your download for the choosen variant: Data sheet Download (.pdf) Tender specifications Text view (.txt) Word (.docx) Quantity:
